Solar Cells Production Equipment



One of our main goals in the near future is to capture a larger portion of this developing market.
We believe that our screen printing knowledge, testing and automation experience will facilitate this goal.
Few years ago, we successfully developed a semiautomatic solar cells screen printer.

The wafers are manually loaded on the printing table.
After the table alignment is done (with a vision system) the wafer is printed.

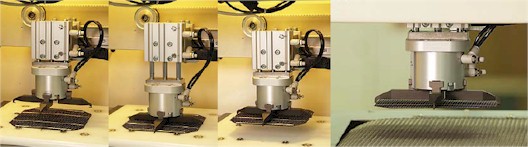

A pick and place unit picks the printed wafer and places it on the IR dryer belt.




Today we can offer a fully automatic printing line.

 The final version consists of 3 identical units.
A short cycle time (between prints) of approximately 2 to 3 seconds is expected.
The machine prints on either 5 or 6 inch wafers automatically.

The wafer will be then placed on the firing kiln conveyor.
Our next developing step will be a wafer testing and inspection line.

An in-line IR dryer was simultaneously developed.

Efficient IR lamps and high air flow ensure short drying time with minimum material stress.

A stand alone, two -zone IR drier is also available, it can be used with manual printers and for different applications.

 To view SOC technical data please download pdf data sheet (click here).
